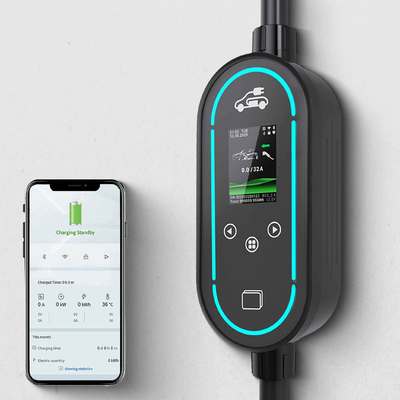

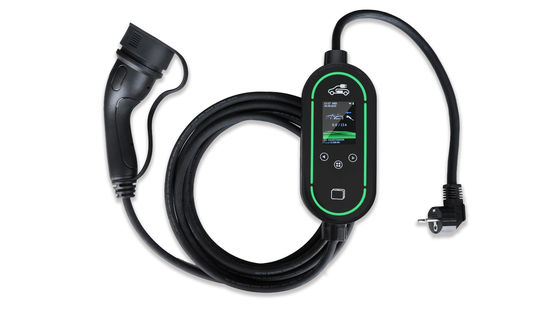

IP67 Rated Weatherproof Outdoor EV Charging Station 3.68kW 16A

Merknaam:	ANS
Modelnummer:	EVB03B
MOQ:	1
Verpakking:	15.7153.15 (binnen)
Betalingsvoorwaarden:	L/C, T/T, Western Union

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Productnaam:

Weerbestendig EV-laadstation voor buiten

Type:

Outdoor EV-laadstation

weiht:

Wifi:

2,5 GHz

Belangrijke functie:

2,4 inch LCE-scherm

Kabel kleur:

Zwarte of Aanpassing

Bescherming:

Certificering:

Levering vermogen:

100000 stuks/maand

Productomschrijving

IP67 Rated Weatherproof Outdoor EV Charging Station 3.68kW 16A

Description:

Built to withstand harsh outdoor conditions, the EVB03B outdoor EV charging station features an IP67 rating, ensuring complete protection against dust and water ingress. It operates reliably in temperatures ranging from -30°C to 55°C and handles relative humidity up to 95%. The compact control box (200mm x 90mm x 52mm) is made from flame-retardant and UV-resistant PC material, offering long-term durability. With a 5-meter standard charging cable and natural air cooling system, this charger is ideal for residential driveways, parking lots, and public charging stations. Its robust construction and high-level safety features make it a dependable choice for all-weather EV charging.

Core Points:

IP67 rated for dust and water resistance
Operating temperature: -30°C to 55°C
Natural air cooling, suitable for harsh environments
Compact and durable design

Specificaiton

Product Model EVB03B
Input/Output voltage	AC 110V/230V
Input frequency	50/60Hz
Max.output power	1 - Phase up to 3.7kW(@230V 16A)
Max.output current	16A for 1 - Phase
Standard	IEC 62752:2016/COR1:2019
Certificate	CE,RoHS
Protection
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
Led screen	2.4-inch
RCD	Type B((AC 30mA+DC 6mA)
Current adjustment	Yes
Relay adhesion detection	Yes
RFID manageable	Yes
WIFI/Bluetooth	Yes(WIFI 2.4GHz)
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 55℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<3W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤3kg
Colour	Black
Material	PC(Flame retardant, UV resistant)

IP67 Rated Weatherproof Outdoor EV Charging Station 3.68kW 16A 0

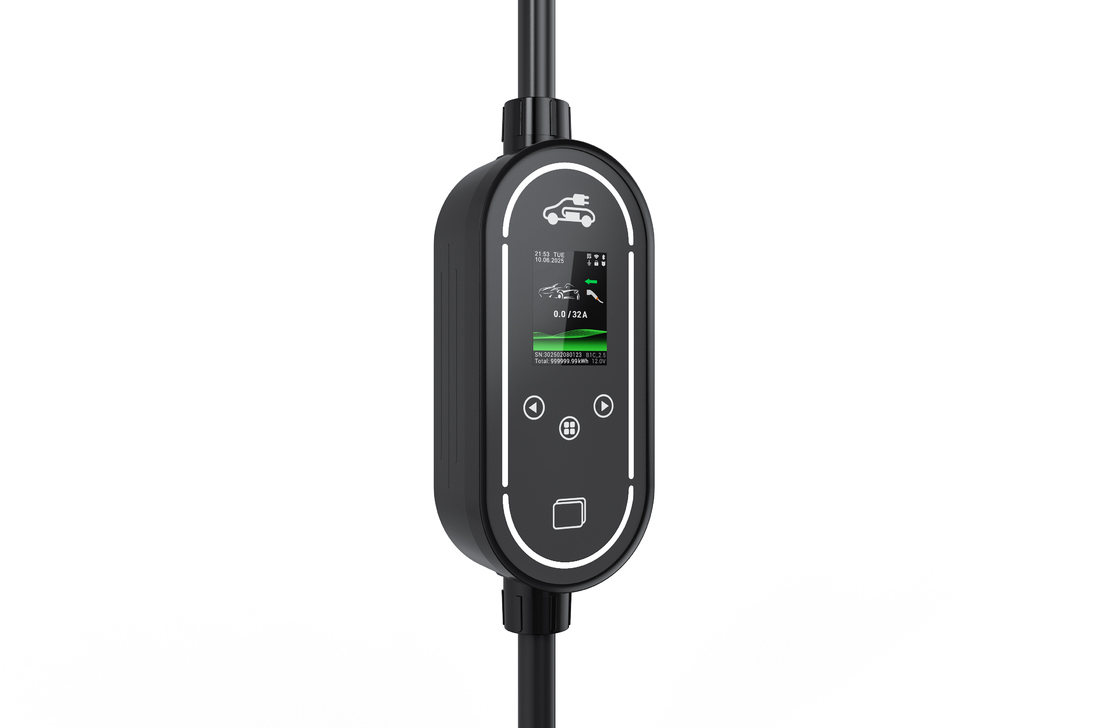

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install

IP67 Rated Weatherproof Outdoor EV Charging Station 3.68kW 16A 1

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Installation cases

IP67 Rated Weatherproof Outdoor EV Charging Station 3.68kW 16A 2

Packaging

Our Certification

Exhibition
IP67 Rated Weatherproof Outdoor EV Charging Station 3.68kW 16A 5

Visits from Various Countries (looking forward to your arrival)

IP67 Rated Weatherproof Outdoor EV Charging Station 3.68kW 16A 6
