3kW Portable EV Charger 16A with Adjustable Current & Delay Charging

Merknaam:	ANS
Modelnummer:	EVA03B
MOQ:	1
Verpakking:	15.7153.15 (binnen)
Betalingsvoorwaarden:	L/C, T/T, Western Union

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Productnaam:

3kW draagbare EV-Lader

Functie -functie:

Huidige aanpassing, aanpassing van de vertraging oplaad

Type:

draagbare evlader

Nominale stroom::

Nominale frequentie:

50Hz/60Hz

Opslagtemperatuur:

-30 ℃ aan +50℃

Sterren:

EN 61851-1: 2017/EN 62196-2: 2017/EN-62752:2017

Kabel kleur:

Zwarte of Aanpassing

Bescherming:

Certificering:

Levering vermogen:

100000 pcs/maand

Markeren:

3kw portable EV charger

adjustable current EV charger

delayed charging portable charger

Productomschrijving

3kw Portable EV Charger Adjust Charging Current And Set Delayed Charging Sessions

Product Description

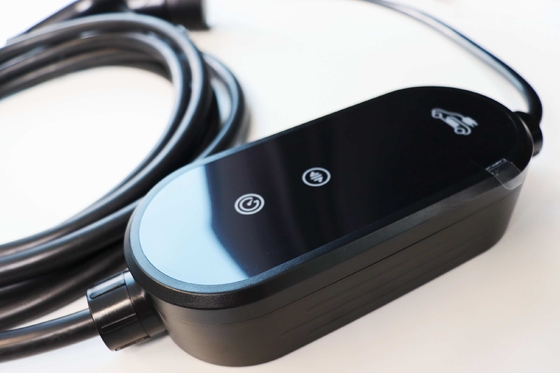

The EVA03B portable home ev Charger combines smart functionality with user-friendly design. It features an intuitive OLED screen that displays real-time charging data, and LED indicators for clear status updates. Users can adjust charging current and set delayed charging sessions, optimizing energy use during off-peak hours. Although it does not support Ethernet, WiFi, 4G, or Bluetooth, its plug-and-play design ensures simplicity and reliability. The compact control box (200x90x52mm) and lightweight structure (≤2.1kg) make it easy to carry and store. The black tempered glass and PC exterior offer both style and durability.

Key Advantage

Adjustable current

Delay charging setting

LED Light and Touch Key

Built-in RCD type B

Specificaiton

Product Model EVA03B
Input/Output voltage	AC 110V/230V
Input frequency	50/60Hz
Max.output power	1 - Phase up to 3.7kW(@230V 16A)
Max.output current	16A for 1 - Phase
Standard	IEC 62752:2016/COR1:2019
Protection
Certificate	CE
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
OLED screen	Yes
RCD	Type B
Current adjustment	Yes
Delay charging adjustment	Yes
Ethernet/WIFI/4G/Bluetooth	No
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 60℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<0.5W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤2.1kg
Colour&Material	Black;Tempered Glass,PC

Features

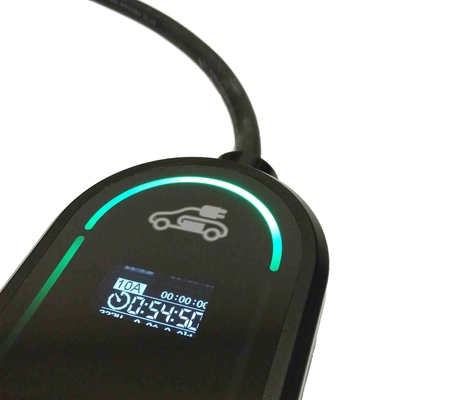

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

3kW Portable EV Charger 16A with Adjustable Current & Delay Charging 0

3kW Portable EV Charger 16A with Adjustable Current & Delay Charging 1

LED Indicators

3kW Portable EV Charger 16A with Adjustable Current & Delay Charging 2

Packaging

Our Certification

Exhibition

3kW Portable EV Charger 16A with Adjustable Current & Delay Charging 5

Visits from Various Countries (looking forward to your arrival)

3kW Portable EV Charger 16A with Adjustable Current & Delay Charging 6
