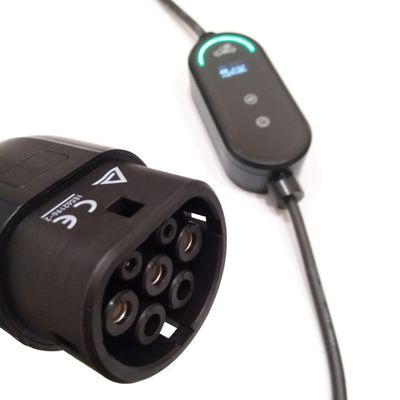

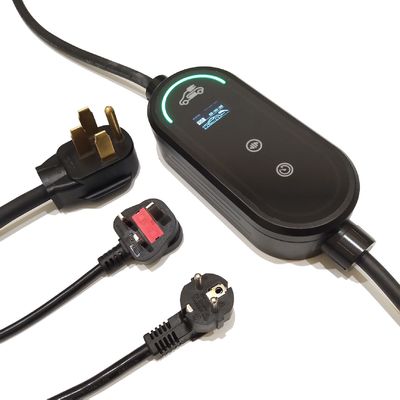

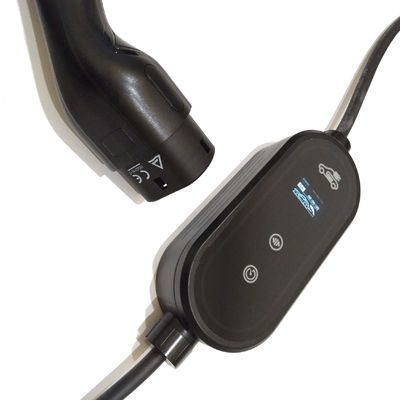

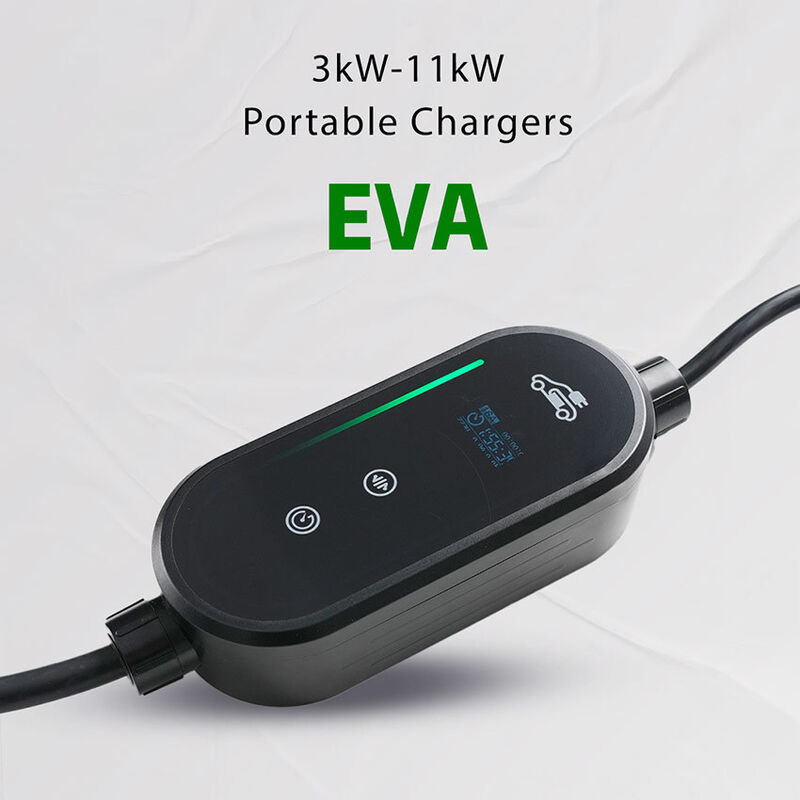

400V 11kW Portable EV Charger with Delay Charging 3.2kg IP67

Merknaam:	ANS
Modelnummer:	EVA11B
MOQ:	1
Verpakking:	15.7153.15 (binnen)
Betalingsvoorwaarden:	L/C, T/T, Western Union

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

Productnaam:

400V 11 kW draagbare EV -oplader

Type:

draagbare evlader

weiht:

3,2 kg

Nominale frequentie:

50Hz/60Hz

Belangrijke functie:

Met aanpassing van de vertraging opladen

Kabel kleur:

Zwarte of Aanpassing

Bescherming:

Certificering:

Levering vermogen:

100000 pcs/maand

Markeren:

400V three phase EV charger

11kw portable home EV charger

EV charger with delay charging

Productomschrijving

3 Phase 11kw Portable Home Ev Charger With CE Certification

Product Description

Designed for versatility, the EVA11B three-phase portable EV charger is perfect for home, workplace, and on-the-go charging. Its ability to support 400V three-phase input makes it suitable for regions with advanced electrical infrastructure, significantly reducing charging time compared to single-phase units.

The charger features user-friendly touch keys, bright LED indicators, and a clear OLED screen that displays essential charging data in real time. Users can easily adjust current levels and schedule charging sessions during off-peak hours for cost efficiency. Weighing only 3.2kg with a streamlined control box, it combines power with portability. Constructed with black tempered glass and PC materials, the EVA11B is not only durable but also aesthetically modern, making it the ideal choice for EV drivers who require high power, intelligence, and reliability in any setting.

Key Advantage

Adjustable current

Delay charging setting

LED Light and Touch Key

Built-in RCD type B

Specificaiton

Product Model EVA11B
Input/Output voltage	AC 400V
Input frequency	50/60Hz
Max.output power	3-Phase up to 11kW(@400V 16A)
Max.output current	16A for 3- Phase
Standard	IEC 62752:2016/COR1:2019
Protection
Certificate	CE
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
OLED screen	Yes
RCD	Type B
Current adjustment	Yes
Delay charging adjustment	Yes
Ethernet/WIFI/4G/Bluetooth	No
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 60℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<0.5W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤3.2kg
Colour&Material	Black;Tempered Glass,PC

400V 11kW Portable EV Charger with Delay Charging 3.2kg IP67 0

400V 11kW Portable EV Charger with Delay Charging 3.2kg IP67 1

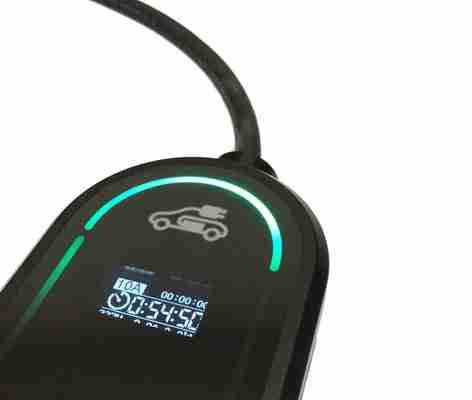

LED Indicators

400V 11kW Portable EV Charger with Delay Charging 3.2kg IP67 2

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install

400V 11kW Portable EV Charger with Delay Charging 3.2kg IP67 3

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Packaging

Our Certification

Exhibition
400V 11kW Portable EV Charger with Delay Charging 3.2kg IP67 6

Visits from Various Countries (looking forward to your arrival)

400V 11kW Portable EV Charger with Delay Charging 3.2kg IP67 7
